Software for electrical and photovoltaic engineering

CADelet Impianti

Drawing electrical systems in AutoCAD

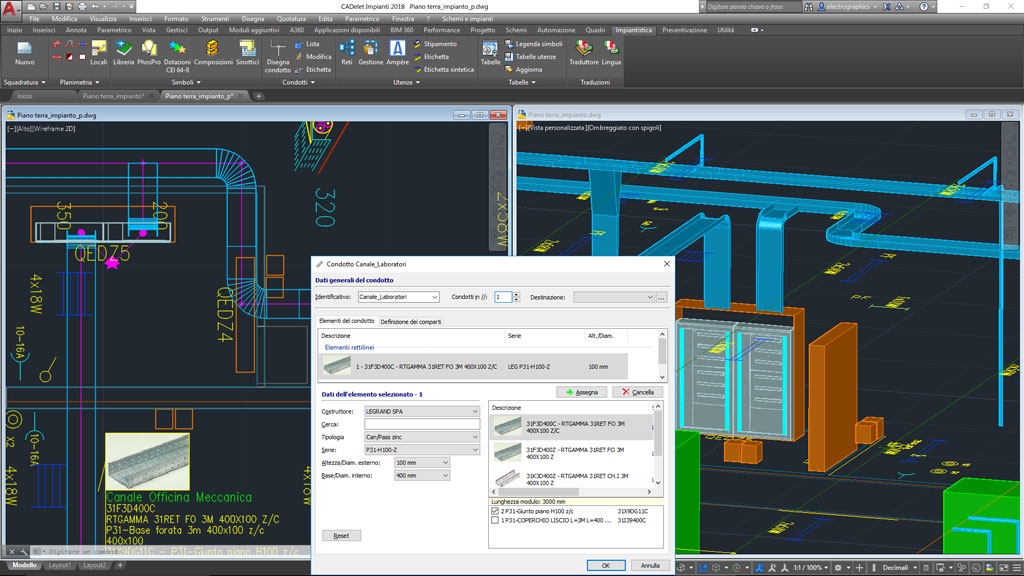

CADelet Impianti is the software for design and documentation of power distribution systems for industrial or civil environments. It is an AutoCAD application. The package is derived from the main product CADelet Professional.

CADelet Impianti - Drawing electrical systems in AutoCAD

System requirements

Minimum system requirements to install and use CADelet Impianti.

  • Computer with 3 GHz o higher processor.
  • At least 8 GB RAM.
  • Hard disk with at least 10 GB free space.
  • Colour video and graphics board (SVGA or higher).
  • USB, mouse, printer or plotter.
  • Windows 10 (version 1809 or higher) or 11.
  • 64-bit AutoCAD version 2018-2025.

Integrations

The following Electro Graphics software products connect to CADelet Impianti to complete the list of all the tools needed for a complete professional electrical engineering.

Tabula

Tabula

Managing bill of materials and related lists

Cablo

Cablo

Managing cables connection and wiring lists

Ampère Professional

Ampère Professional

Calculation of LV/MV electrical grid according to international standards

Vario

Vario

Management of variants, options and accessory parts of diagram

Solergo

Solergo

Design of grid-connected and stand-alone photovoltaic systems


Other electrical CAD

In addition to CADelet Impianti, other electrical CAD solutions are available: software that runs on Autodesk AutoCAD, or which includes Autodesk AutoCAD technology engine.

CADelet Professional

CADelet Professional

Wiring diagram and electrical engineering in AutoCAD

CADelet Schemi

CADelet Schemi

Wiring diagram for industrial automation in AutoCAD

iDEA

iDEA

CAD for electrical engineering, both, automation and electrical systems

Eplus

Eplus

CAD for electrical engineering, both, civil and industrial systems
