Cablo
Managing cables connection, wiring lists and automatic panel routing

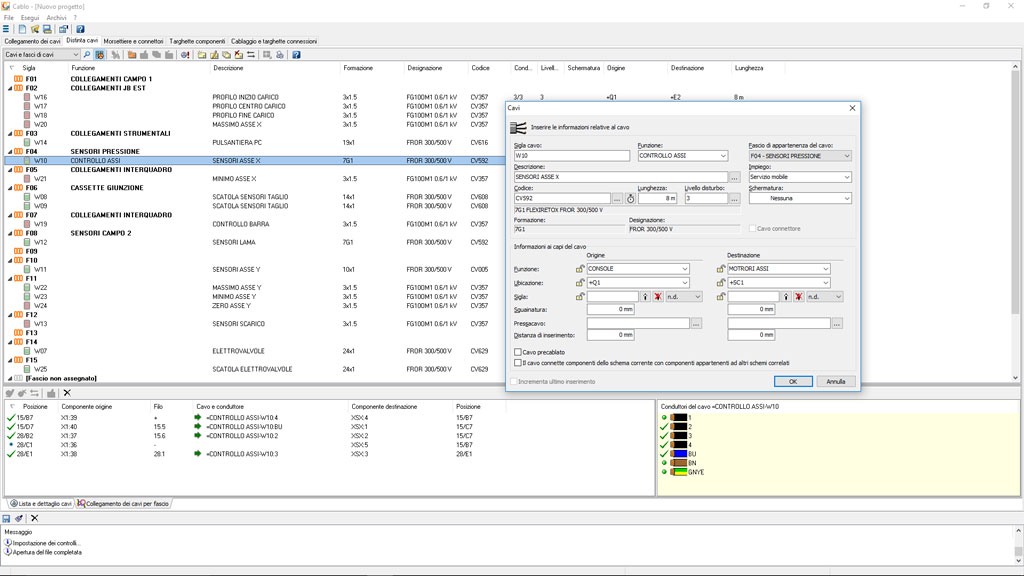

Cablo manages the definition of the connecting cables, the wiring among the terminal blocks and other elements of the system, and then the separate cables, the wiring list, the list of identifiers of wires, cables, components or clamp terminals. Cablo directly interfaces with Electro Graphics software for designing electrical diagrams by acquiring the data processed for the representation of terminal blocks. In terminal block management, you can make changes, add auxiliary elements, and then draw them into the drawing. Moreover, Cablo interfaces with software for printing wire and equipment labels.
System requirements
Minimum system requirements to install and use Cablo.
- Computer with 3 GHz o higher processor.
- At least 8 GB RAM.
- Hard Disk with at least 6 GB free space.
- Colour video and graphics board (SVGA or higher).
- USB, mouse, printer or plotter.
- 64-bit Windows 7 SP1, 10 or 11.
Integrations
The following Electro Graphics software products connect to Cablo to complete the list of all the tools needed for a complete professional electrical engineering.
