New features 2022 Series - Photovoltaic engineering

Electro Graphics releases the latest 2022 Series of electrical and photovoltaic design software. Here are the most important features and enhancements introduced about photovoltaic engineering in the software Solergo

See all new features 2022:

3D model for the definition of the laying areas

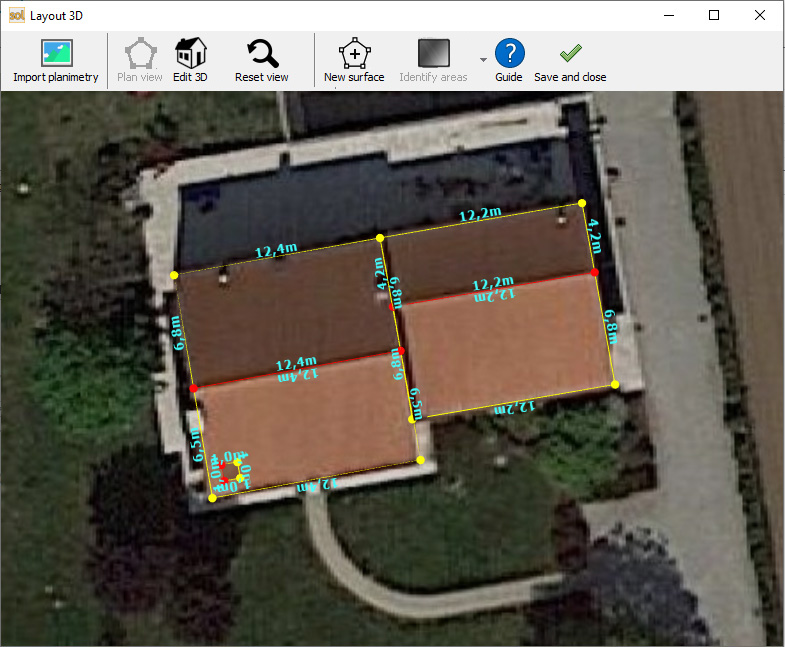

• Generation of the 3D model of the installation site from Google satellite images with extrusion and solid modeling functions.

• Definition of the laying areas and obstacles on the 3D model.

• Preview on the 3D model of the energy performance on the various laying areas.

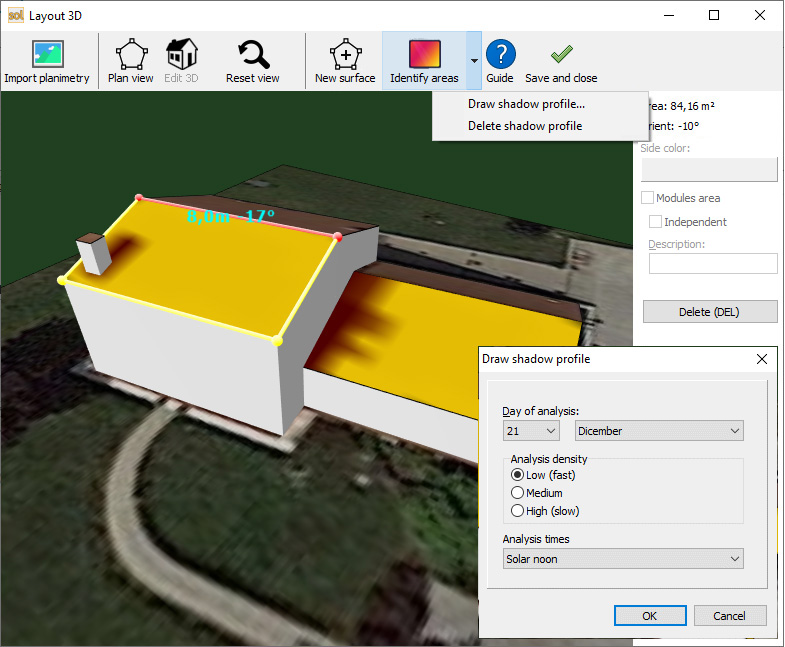

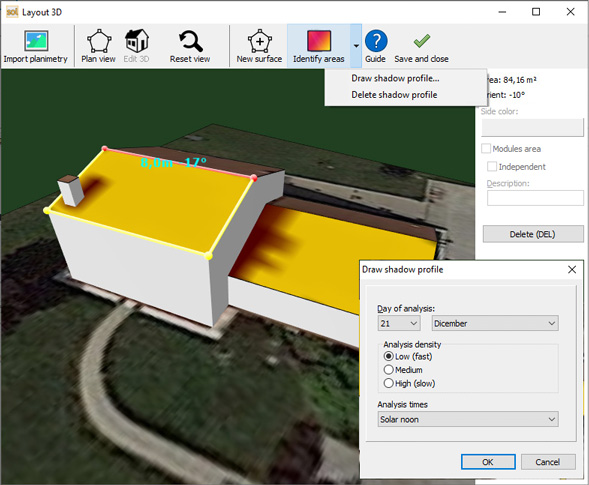

• Analysis of losses due to shading deduced from a 3D model.

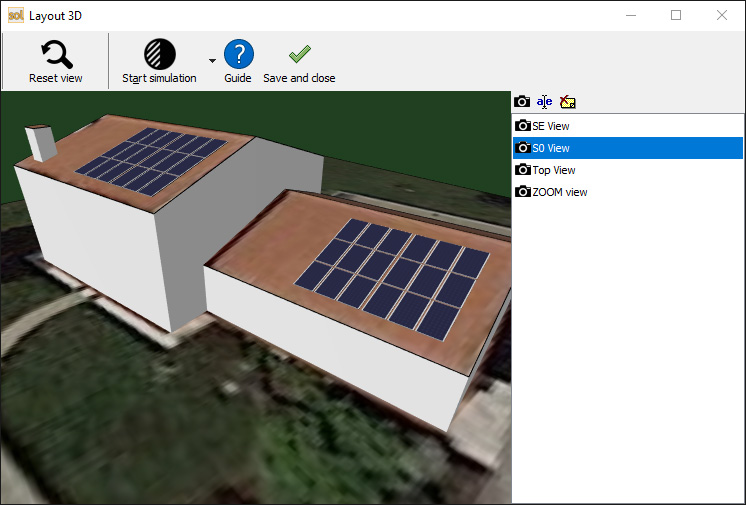

• Rendering of the photovoltaic system with inclusion of the images of the model in the report to be printed.

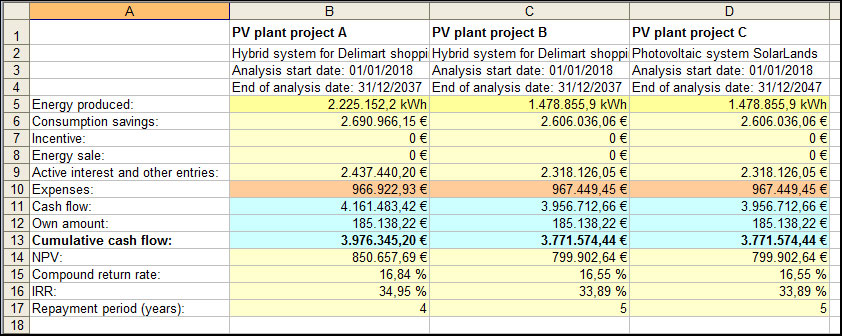

Comparison of the economic return of several projects or plants on a spreadsheet

• Allows you to compare the economic return values calculated in multiple plant projects.

• To allow easy comparison and re-use of the result, Solergo generates a spreadsheet with all the calculated amounts, for each plant examined, at the analysis end date.

General improvement of the produced documentation and management of watermarks

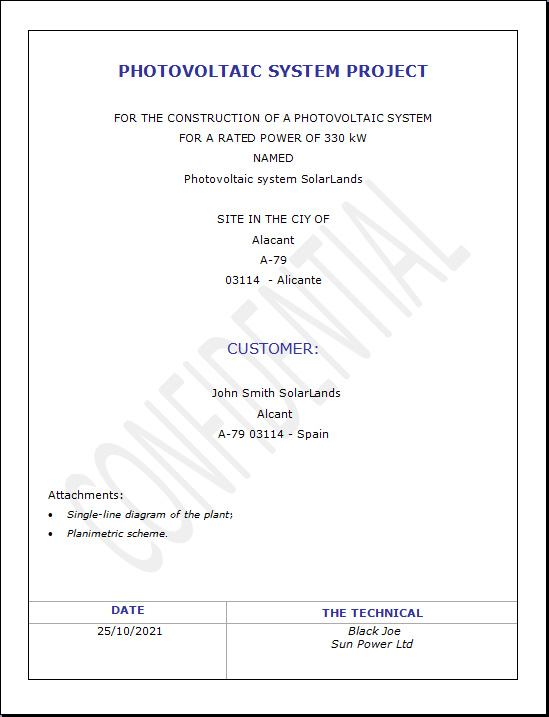

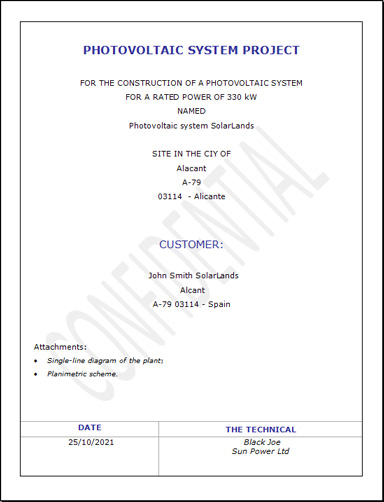

• All documents generated by Solergo can now be accompanied by a watermarked text visible on the background of the sheet. In addition to the text to be displayed, it is possible to customize the font of the character and the arrangement.

Extension and updating of modules and inverters databases

• Below is the list of implementations made to the Solergo 2022 archives as the addition of new series, revision and integration of the latest news for those already in the archive.

Grid-connected inverter archive

FIMER: Serie PLUS, PVI, PVS, PVS800, PVS980, R, TRIO, TRIO-TM, UNO-DM

HUAWEI: Serie SUN2000

Power Optimizers Archive

HUAWEI: Serie SUN2000-P

SOLAREDGE: Serie M1600, P801, P950

TIGO ENERGY: Serie TS4-A-O

Battery and Storage systems archive

BYD: Serie B-Box HV, B-Box HVM, B-Box HVS, B-Box LV, B-Box LVL, B-Box LVS, B-Box Pro

LG CHEM: Serie RESU

Photovoltaic modules archive

AVANCIS: Serie PowerMax, SKALA

BISOL: Serie Duplex, Premium, Spectrum, Supreme, XL

HYUNDAI: Serie RG, SG

REC SOLAR: Serie N-PEAK, N-PEAK BLACK
