New features 2019 Series - Photovoltaic engineering
Electro Graphics releases the latest 2019 Series of electrical and photovoltaic design software. Here are the most important features and enhancements introduced about photovoltaic engineering in the software Solergo.
See all new features 2019:
Energy analysis of the system at 15 minute intervals with possible use of consumption data provided by distributors on .xls file
Solergo 2019 introduces the possibility to set the accuracy of the analysis calculations of the production of the planned photovoltaic plant, of the consumption of the system and the relative economic evaluation.
By default Solergo calculates electricity flows with hourly accuracy, but now a more detailed calculation can be triggered which analyzes the values at 15-minute intervals.
The energy and economic analysis performed with quarter-hour precision can be more precise in the following conditions:
• presence of electrical loads defined with precision in the quarter of an hour, such as consumption profiles supplied directly by the electric distributors;
• use of small storage systems. In this case, short discharge / charge cycles can be simulated more precisely by this time of analysis.

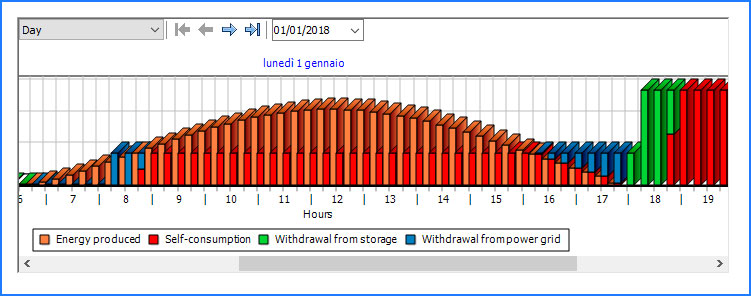

Like the print reports, the daily chart of the energy analysis with precision in the quarter of an hour shows the trend of the energy produced, absorbed and self-consumed, detailing four values for each hour.
Further development of optimizers for parallel module management
Solergo 2019 allows to check further configurations of connection to power optimizers:
• one optimizer for photovoltaic module;
• one optimizer every two modules in series;
• one optimizer every two modules in parallel (versions with double input for parallel connection of two modules).
In the process of configuring a photovoltaic system with Solergo, it is possible to choose the use of power optimizers in the Components page, after choosing the photovoltaic module. The configurations that meet the electrical checks are proposed in the drop-down list that is activated after selecting the Use power optimizer check box.
Updates according to new standards and connection rules
The nominal power of the system is now considered equal to the maximum active power that can be supplied; so, it is limited by the nominal power of the inverter if it is lower than the sum of the STC power of the modules.

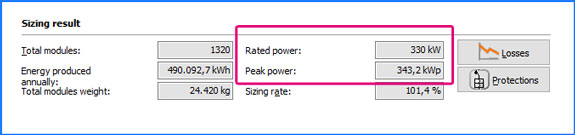

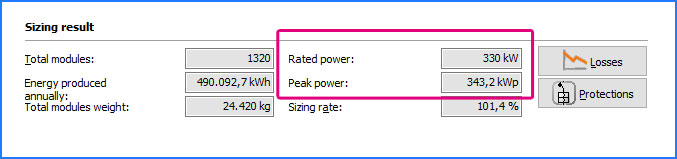

With reference to this, the nominal power and peak power are now specified.
Importing monthly loads profile in the Bi-Time or Tri-Time mode
With the Import monthly / diary load profile function it is possible to set the consumption of each month of a standard year, detailing the components in the bands defined by the tariff applied to the system (Bi-Time or Tri-Time mode).
Calculation of the total weight of the modules
The calculation of the total weight of the modules it is now available on the components sizing results. A special label can be used to report the data also in custom reports.
More details on string junction boxes in the single wire diagram Each line exiting the string junction boxes present in the plant layout is represented by a separate single-line connection.
Automatic insertion of markers for microinverters in plant layout
In case of use of microinverters it is possible to insert the inverter markers automatically, in correspondence to the modules or strings in the layout of the plant.
Special configurations for systems with microinverters In systems with microinverters, cable calculation, device estimation and connection diagram design can be verified by defining the number of inverters to be connected in parallel, rather than deducing the connection situation data present in the layout of the plant.
Bank financing with pre-amortization
In the case of a bank financing, it is possible to set a number of pre-amortization installments included in the duration of the loan. The fixed installments will be calculated over the period of the loan, after deducting the installments of the pre-amortization period.
Sharing of databasse packages
A new feature was created to allow the sharing of technical information of materials between stations or Electro Graphics products of different versions.
The Electro Graphics EGZ database package (file with .egz extension) contains material data and technical data specific to the type of material, which may include electrical data, shapes, images, associated documents.
EGZ packages will be published by Electro Graphics and made available for installation using the new EG Data Exchange tool. An EGZ package can also be exported from your Material database using the Export database package function, available in the materials archive window. And new EGZ packages can be imported directly into your Maerial database using the Import database package function.
Extension and updating of the module and inverter databases
For all the types of devices that can be used in a photovoltaic system, new series have been integrated into the solergo database.
Follows the list of implementations made to the Solergo 2019 archives as an addition of new series, revision and integration of the latest news for those already present in the archive.
Inverter for grid-connected photovoltaic systems
ABB
- Seriess UNO
APsystems
- Seriess YC500A
B&B POWER
- Seriess Solar Family, Solar Hybrid, Solar Town
CHINT
- Seriess CPS SC, CPS SCA, CPS SCE, CPS SCJ
CSI CANADIAN SOLAR INC
- Seriess CSI, KTL-CT, KTL-GS-FL, KTL-GI, KTL-GS
DELTA ENERGY SYSTEMS
- Seriess RPI-Commercial Seriesss
DIEHL AKO
- Seriess Platinum H, Platinum R3,Platinum S, Platinum TL
EATON
- Seriess XSTORAGE HOME
ENPHASE ENERGY
- Seriess C250, IQ6, M215, M250, S280
FIMER
- Seriess MV CENTRAL INVERTERS, STORAGE INVERTERS, 3PH
FRIEM
- Seriess RECon 2.30H, RECon 2.30H1,RECon 30H, RECon 30H1, RECon 30L, RECon 30L1
FRONIUS INTERNATIONAL
- Seriess PRIMO, SYMO,ECO
GINLONG TECHNOLOGIES
- Seriess Solis Hybrid, Single Phase, Solis Three Phase
GPTECH
- Seriess SmartPV-WD International, SmartPV-WD UL, SmartPV-WD3 1100V,SmartPV-WD3 1500V
GROWATT ENERGY
- Seriess CP, MTL-10,MTL-S, MTLP-US, S, TL3-HE, TL3-S, TL3-US, UE, US
HOYMILES
- Seriess MI-250, MI-500
HUAWEI
- Seriess SUN2000, SUN2000L, SUN2000P
INGETEAM S.A.
- Seriess Ingecon Sun 3 Play TL, Ingecon Sun 3 Play TL M, Ingecon Sun PowerMax, Ingecon Sun SunPower, Ingecon Sun SunPower TL
KACO
- Seriess Blueplanet; Powador
KOSTAL
- Seriess Piko
PARKER HANNIFIN
- Seriess 890GT-S
MASTERVOLT
- Seriess SOLADIN
REFUSOL
- Seriess REFUSOL
SIEL
- Seriess SOLEIL STRING
SMA TECHNOLOGIE
- Seriess Sunny Boy, Sunny Central, Sunny TriPower, Sunny TriPower Core1
SOLAREDGE
- Seriess SE
SUNGROW
- Seriess SG
SUNWAYS
- Seriess NT
THINKPOWER
- Series T SeriesS
YASKAWA
- Series SGI, XGI
Inverter DC/AC
ATERSA
- Series BCR
B&B POWER
- Series Solar Hybrid, Solar Off-Grid
KACO ENERGY
- Series Blueplanet
MORNINGSTAR
- Series SunSine
OUTBACK POWER SYSTEM
- Series GFX, OBX,FXR,VFXR
PHOCOS
- Series SI
STECA
- Series AJ, PLI, Solarix PI, Solarix PLI,Xtender
VICTRON ENERGY
- Series Multiplus, Phoenix
Archivio Regolatori di carica
B&B POWER
- Series Solar Charger
EPSOLAR
- Series EPIPDB-COM, eTRACER AD, eTRACER BND, iTRACER AD, LandStar, LandStar BPD, LandStar EPD, TRACER BN, TRACER BP, TRACER CN, LS-BP, LS-E, LS-EU, ViewStar AU
PHOCOS
- Series CIS-MPPT, CIS-N-LED Seriess, CMLmppt, CMLsolid, CMLup, CXNsolid, CXNup 2B, CXup Seriess, ECO, Ecoterm, ECO-T-MPPT, MPPT 100-40, MPPTsolid
STECA
- Series Solarix PLI
VICTRON ENERGY
- Series BlueSolar Charge Controller, BlueSolar PWM-DUO, BlueSolar PWM-Light, PWM-PRO, SmartSolar Charge Controller
WESTERN
- Series DUAL B, MPPT, PWM, SBP-S, SPC
OUTBACK POWER SYSTEM
- Series FLEXmax, FLEXmax Extreme
Optimizers for photovoltaic systems
HUAWEI
- Series SUN2000P
SOLAREDGE
- Series P370, P505, P600, P700, P800s, P800p
Batteries
BOSCH SOLAR ENERGY
- Series P5
FIAMM
- Series XL
FIRST POWER
- Series Deep Cycle Battery, Gel Battery, High Temperature Battery
HELIAR
- Series FREEDOM
OUTBACK POWER SYSTEM
- Series EnegyCell FLA EnergyCell GH, EnergyCell NC, EnergyCell OPZV, EnergyCell RE
Photovoltaic modules
A2PEAK
- Series PEAK ON P3-235-60, PEAK ON P230-60, PEAK ON P130-36
ALEO SOLAR
- Series P18 250-265W, P19 290-300W, S18 250-265W, S25 235-245W, S59 HE 300-310W, S75 230-240W,
S79 HE 295-305W, S79 sol 290-300W, Elegante 190W
ALFASOLAR
- Series ASE36M, ASE48M, ASE60M, ASE72M, ASE36P, ASE60P
ALTIUS FOTOVOLTAIC
- Series AFM-60-260, AFM-72-310, AFP-60-250, AFP-72-300
PERLIGHT SOLAR
- Series PLM-150M-36, PLM-150P-36, PLM-200M-72, PLM-250M-54, PLM-250M-60, PLM-250MA-60, PLM-250MB-60, PLM-260P-60, PLM-260P-60DG, PLM-260PB-60, PLM-270M-96, PLM-285P-66, PLM-310M-72, PLM-310P-72, PLM-350M-84, PLM-350P-84
REC SOLAR AS
- Series Peak Energy, Peak Energy 72, Twinpeak, TwinPeak 2, TwinPeak 2 BLK2, TwinPeak 2S 72, TwinPeak 72
MERLIN SOLAR
- Series BR72, FX24L, FX36L, FX36S, GX36S
SUNPOWER
- Series P17
Protection devices
ABB
Only magnetic switcher for engine starter in LV
- Series MO 132
Molded case circuit breakers for LV
- Series Tmax XT, Tmax XT1, Tmax XT2
ASHIDA ELECTRINICS
Relays electronic releases
- Series ADR
BTICINO
Differential blocks fir LV
- Series BTDIN
- Series BTDIN D
Magnetothermic switches for LV
- Series BTDIN 100, BTDIN 60, BTDIN RS
LEGRAND
Fuses
- Series C, NH
Fuse holder bases and disconnectors
- Series C/CT, C/CTX, SP
Motor Starters
- Series MPX3 32H, MPX3 32S
ITALWEBER
Fuses for MV
- Series FMT
SAREL
Switches for MV
- Series IM6P, IM6P-TF, IM6S, IM6S-TD, IM6S-TF, WL
SCHNEIDER ELECTRIC
Molded case circuit breakers for LV
- Series MTZ1, MTZ2, MTZ3
Relays electronic releases
- Series MICROLOGIXC X
Switches for MV
- Series IM, IMB,IMC,IMP
SIEMENS
Differential relay with separate toroid
- Series 5TT3-0Y
Surge arresters and overvoltage limiters
BTICINO
- Series F10AP, F10LFV
See all new features 2019:
