New features 2019 Series - Wiring harness and Materials list
Electro Graphics releases the latest 2019 Series of electrical and photovoltaic design software. Here are the most important features and enhancements introduced about wiring harness in Cablo and about materials list in Tabula.
See all new features 2019:

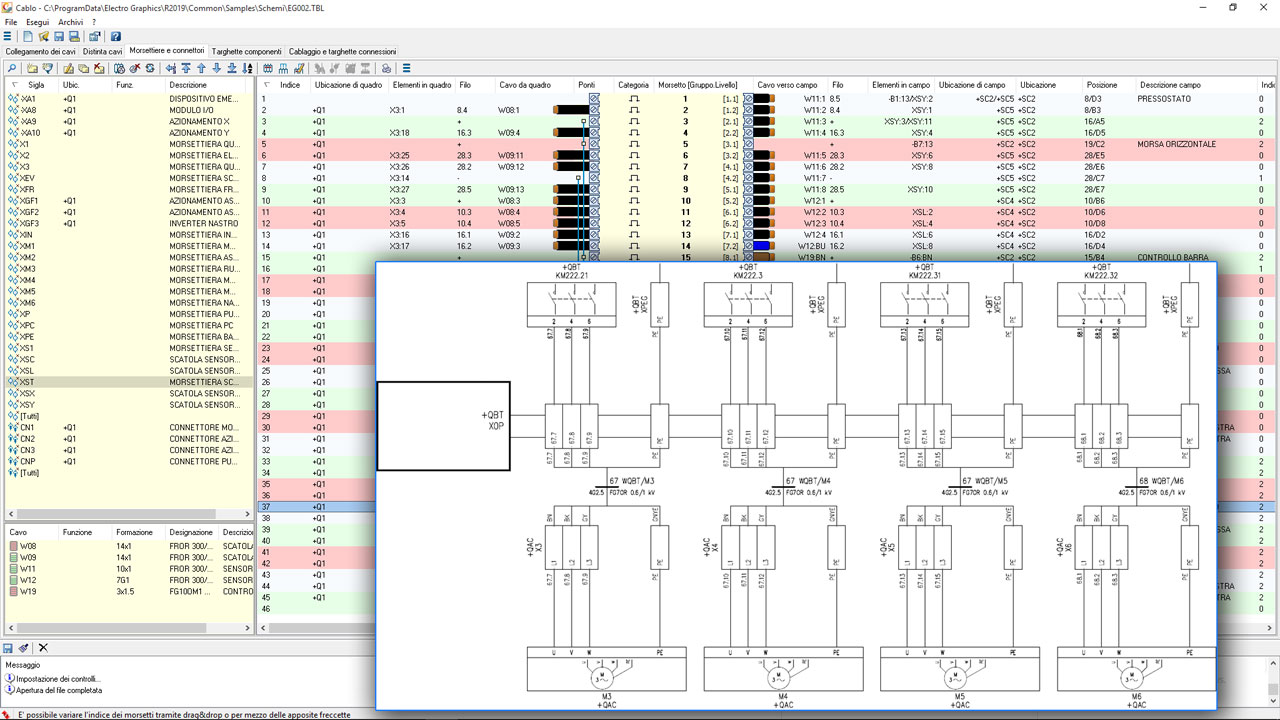

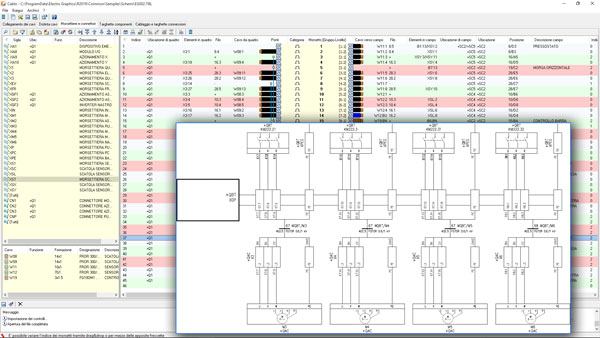

Multi-level connection diagram between terminal blocks and devices
The connection diagram of the terminal board (or connector) is a new level representation of the connections upstream and downstream of a terminal board; it can be drawn automatically in the wiring diagram in CADelet, Smart, and iDEA through the interface of Cablo 2019.
Each connection level represents the connections between a terminal board and the connected components.
If one or more of these components are terminal blocks or connectors, a new level is added to the representation in accordance with the connecting direction from the main terminal board.
If cables are connected to the connections, they are shown on the diagram, with the cable identification data and the wiring data of the conductors.
Starting from a selected sheet, the software will make the drawing in the necessary sheets. The diagram shows all the connection levels from the selected terminal block that can be represented in the space available in the sheet. The design order of the terminals of the main terminal board is determined by the index of the terminal board that can be set in Cablo. The terminal block connection diagram is updated automatically using the Update tables function.
Extraction of wire plates and components according to KMI and Script@MI standards
In Cablo 2019 it is possible to export the list of connections in the compatible format for the KM Corporate automatic machines with the configuration of the exportable data set.
It is also possible to generate a csv format file, for the Script@MI label printing system by MORSETTITALIA.
Deploying and updating database
For all device types present in the database, new series were introduced.

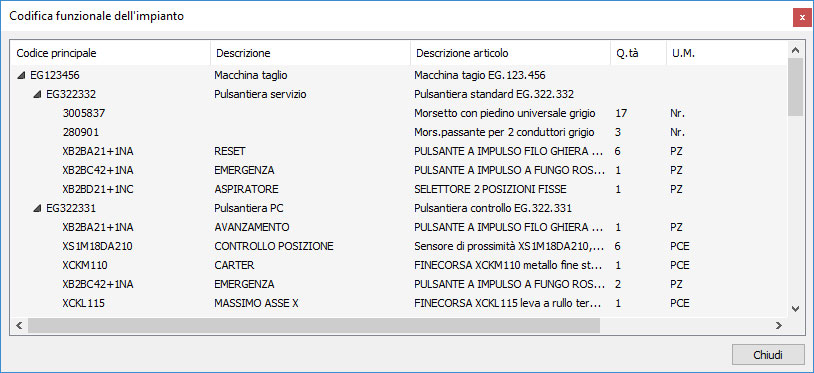

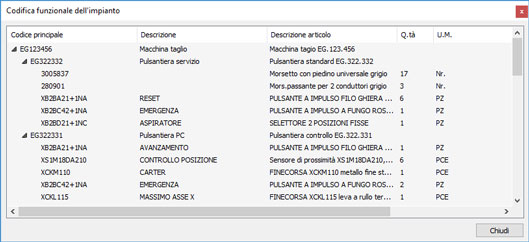

Management of the plant, machine and functional group level for the purpose of preliminary estimation
Using the new coding of electrical diagram elements functions, now available in CADelet, iDEA, Eplus, in Tabula 2019 you can so obtain a bill of materials with a coded and hierarchical structure.
As an alternative to the list of material codes about the all components, it is possibile to display an estimate material list made up of the codes of each machine or functional group. That is a material list more oriented to the commercial or administrative network.
General revision of print menu with addition of spare parts management

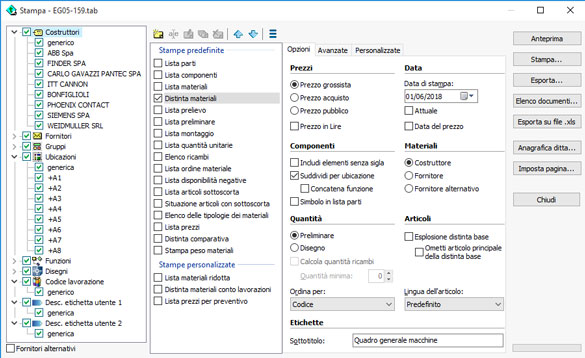

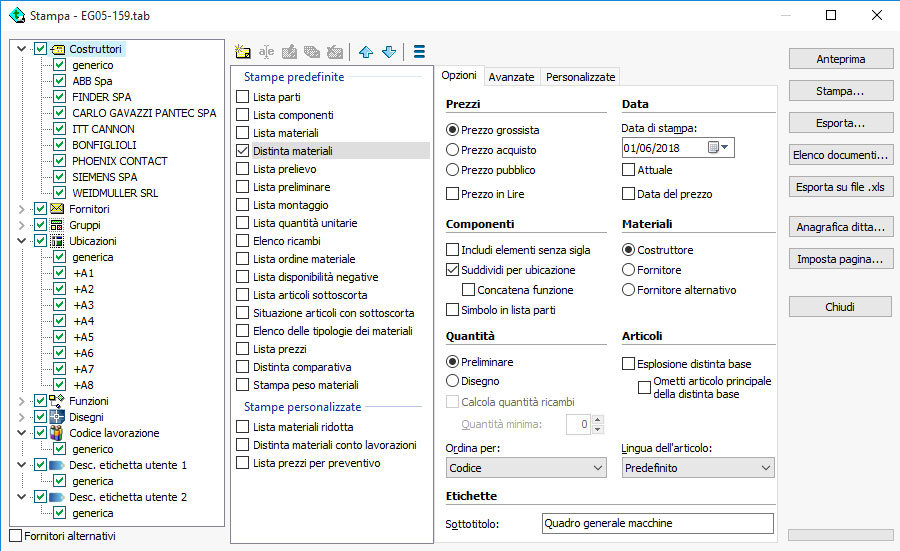

The Print window interface has been completely redesigned to facilitate the management of standard and customized printing profiles and the many options available.
All printing features are visible in a single page divided into three sections, where you can choose which materials to print, what kind of document to print and set all preferences.
The Parts list is the list of materials in the plant, for which a certain number of spare parts is required. For each item in the bill of materials, the spare parts quantity can be now shown as a percentage. The quantity of spare parts is calculated by applying the percentage parts quantity to the value of the Preliminary quantity or Drawing quantity, based on the option selected in the article database.
Acquisition of metric and modular data of cable-conduits
The extraction of the BOM data from the drawing can now also include the cable-conduits elements drawn with the Draw conduit function.
The amount of materials associated with cable conduits and related accessories depends on the properties set in the Cable conduit database and on methods for exporting quantities set. The cable conduits can therefore be counted according to the length in the drawing, or the number of pieces calculated based on the length measured in the drawing, the length of a single piece and the number of conduit in parallel.
Deploying and updating database
For all device types present in the database, new series were introduced.
